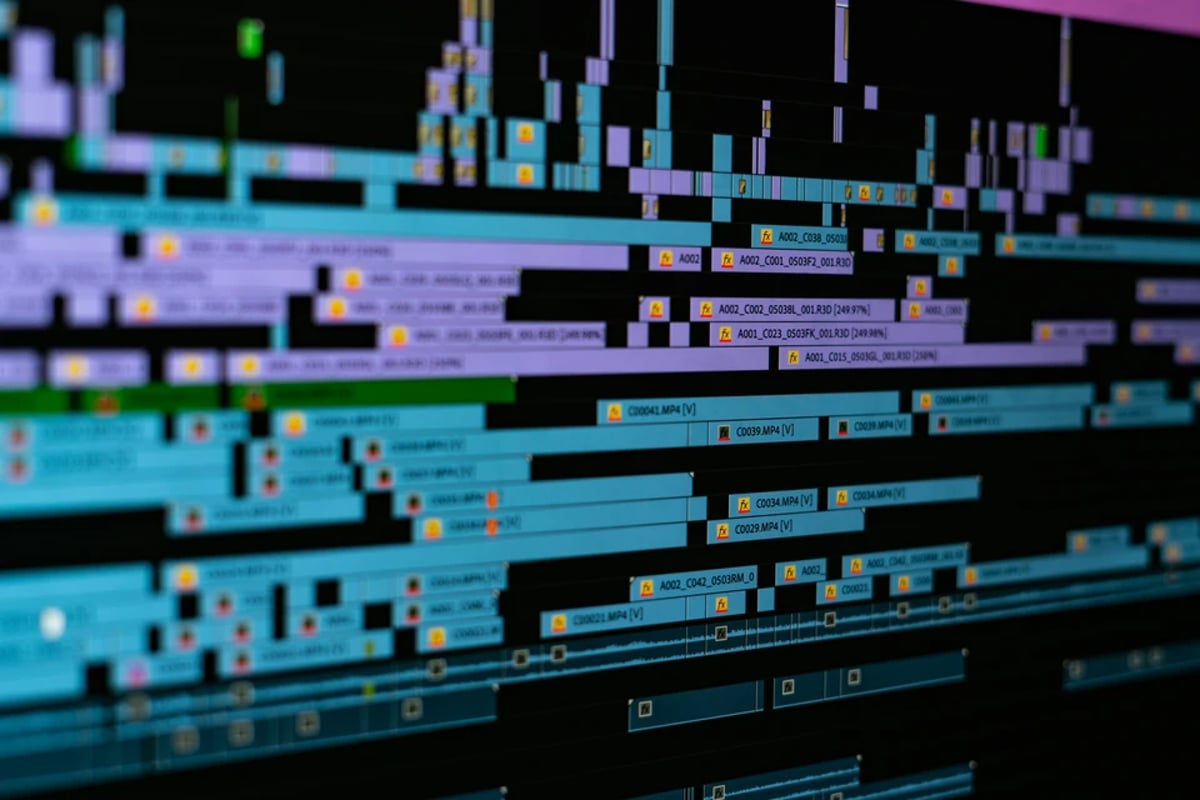

DX/MX/FX Track Layout: AAF Handoff Standards

Industry Standards for DX/MX/FX Track Naming Conventions

The foundation of a reliable audio turnover lies in consistent and explicit track labeling. Professional broadcast and film post facilities universally mandate a clear distinction between dialogue (DX), music (MX), and effects (FX) tracks. This is not arbitrary; it is a practice born from decades of experience in large-scale productions where clarity prevents confusion and streamlines complex workflows. The most common convention sees dialogue occupying the lowest numbered tracks, followed by music, and then sound effects. For instance, in Avid Media Composer, a typical layout might designate A1 for boom dialogue, A2 for lavalier microphones, A3 for backup or ambient dialogue, and A4 for guide music or on-set playback.

Additional tracks would then be used for production effects or temporary sound design elements.

The importance of this goes beyond simple organization. When an AAF is exported, these track names become embedded metadata. This metadata is crucial for the sound editor working in a Digital Audio Workstation (DAW) like Pro Tools. Upon import, Pro Tools retains these labels, enabling instant sorting and filtering of clips. Without this, the sound editor faces a timeline full of generically named tracks (e.g., "Audio 1-8"), forcing them to manually listen to every clip to determine its content before they can even begin their work. This manual relabeling and sorting can add 1-2 hours per reel to the dialogue editor's workload, directly impacting the project's budget and schedule.

Avid Media Composer, due to its central role in the development of the AAF format (maintained by the AAF Association and now AMWA since the early 2000s), offers the most reliable NLE-to-DAW handoff, particularly to Pro Tools. Its track naming via the Timeline's Track Selector panel ensures that labels like "DX Boom" or "MX Temp" are exported directly. While other NLEs like DaVinci Resolve (which often defaults to generic A1-A8 without explicit labels) and Adobe Premiere Pro (which can have inconsistent naming practices) also export AAFs, their output often requires more extensive cleanup in the DAW. Workflow tools like Forte AI's fPost, built specifically to automate AAF prep in Pro Tools, confirm that Media Composer consistently produces the cleanest source AAFs for downstream automation.

💡 Pro Tip: Before the first audio handoff, the picture editor should send a short screenshot of their NLE's Track Selector panel to the sound team. This visual confirmation allows the sound editor to verify the DX/MX/FX layout and naming conventions, catching potential issues before the full export. Pro Tools professionals often verify imported AAFs by sorting the Clip List by track name, which quickly reveals any production effects mixed onto dialogue tracks.

Configuring Handles and Active Tracks for Reliable AAF Exports

Beyond naming, two critical elements for a functional AAF export are the inclusion of sufficient "handles" and ensuring all intended tracks are active. Handles refer to the extra audio (and sometimes video) material extending beyond the in and out points of a clip in the edit. The industry standard for dialogue editing is to provide 10 seconds of handles on each side of every clip. This translates to 240 frames at 24fps, 250 frames at 25fps, or roughly 300 frames at 29.97fps. These handles are indispensable for the sound editorial team, allowing them to clean up dialogue, smooth transitions, add fades, and match ambience without requiring a re-export from the picture editor.

Without handles, clips are cut precisely at their in/out points, leaving no room for audio manipulation and often resulting in abrupt sound edits.

The handling of active tracks is equally important. Many NLEs allow editors to deactivate or lock tracks, often to improve playback performance or prevent accidental edits. However, inactive or muted tracks may be excluded from an AAF export depending on the NLE's export options. This can lead to critical omissions, such as guide music, temporary scores, or essential production sound effects that the sound team needs for reference or to build upon. The absence of these tracks can cause significant delays when the sound editor discovers missing elements mid-session, often requiring a 30-60 minute pause to request a new AAF or OMF from the picture editor.

In Avid Media Composer, setting handle length is done via the AAF Export options, where a specific frame count can be input. Editors must also visually inspect the Track Selector for inactive (grayed out) or locked tracks and activate them via a right-click. Upon import into Pro Tools, sound editors verify handles by checking the Clip List, which should show the specified handle material on either side of each clip. Facilities frequently include handle specifications in their initial technical sheets, ensuring that re-exports are minimized.

💡 Pro Tip: Dialogue editors should include "10-second handles + full track activation" as a standard line in their handoff email templates. For picture editors working in Media Composer, the Timeline's track activation controls allow batch toggling of tracks, streamlining the pre-export process. Pro Tools editors, post-import, often nudge selected clips by the handle length to quickly confirm picture sync before commencing any sorting or editing.

Track Targeting and Layout Discipline in Major NLEs

Effective track targeting and layout discipline are crucial for maintaining the integrity of audio elements throughout the editorial process. This involves intentionally placing specific types of audio onto their designated tracks from the moment they are cut into the timeline. For example, all dialogue (boom, lav, ADR) should reside on DX tracks, music on MX tracks, and sound effects on FX tracks. This separation, which should ideally begin at picture lock, prevents cross-contamination and ensures that the AAF export accurately reflects the intended categorization of sound elements.

NLEs offer various tools to facilitate this discipline. Adobe Premiere Pro provides track targeting icons on the left panel of the timeline, allowing editors to mute or non-target irrelevant tracks when making a cut. While Premiere Pro lacks native enforcement of DX/MX/FX categories, disciplined targeting significantly helps. Avid Media Composer offers robust track targeting through its Track Selector, where record-enable buttons indicate active tracks, and it allows for custom audio track layouts that editors can save as workspaces for dialogue, music, and effects.

Logic Pro, while primarily a DAW, supports track-level Protect (lock) settings that prevent edits on dialogue tracks from affecting music or effects tracks during the picture polish phase, leading to cleaner AAF subsets when Logic is used as an intermediate.

The consequences of poor track targeting are substantial. Cutting dialogue onto a music track, or an effect onto a dialogue track, results in a "cross-contaminated" AAF. When imported into Pro Tools, these mixed clips require the sound editor to manually separate them, effectively doubling the time needed for track reorganization. This is a common pitfall for indie editors who default to stacking audio on generic "Audio" tracks without considering the downstream impact. Steinberg Nuendo, recognizing the importance of this separation, includes an explicit track selection dialog during AAF export, allowing for MX/FX isolation, a feature that mirrors Avid's activation checks.

💡 Pro Tip: In Premiere Pro, mastering the keyboard shortcut "T" for single-track targeting is highly beneficial. Many professionals map number keys to specific DX/MX/FX rows for rapid and accurate placement. For facilities, a checklist item during picture lock should be: "Confirm 80%+ of tracks match DX/MX/FX specification." This provides a realistic target while still enforcing a high standard of organization. For background on the broader handoff package, see Crafting Seamless Turnover Packages for Post-Production.

Pro Tools Workflow Rebuild: From Picture Cut to Post Template

Even with a perfectly organized AAF export, the transition from an NLE's timeline to a professional Pro Tools session requires a structured "rebuild" phase. The AAF imports clips into Pro Tools in the order they appeared on the picture editor's timeline, which rarely aligns with a sound post-production facility's template. A Pro Tools session for a feature film or episodic series will typically have a highly organized template with hundreds of tracks pre-configured for specific purposes: dialogue (D1-8 for boom, lavs, ADR, voiceover), music (M1-8 for temp score, licensed tracks, stems), and sound effects (F1-16 for production effects, hard effects, Foley, ambience, backgrounds).

The first step after AAF import into Pro Tools is verification. Sound editors meticulously check clip content, ensuring that clips on a "DX" track are indeed dialogue, and not a stray sound effect. Pro Tools' "Import Session Data" feature allows for AAF import and relinking if media goes offline. Color coding (e.g., right-click > Track Color, with DX often blue, MX green, FX red) provides immediate visual cues for organization. Nuendo also offers robust AAF import and track mapping, with features like Fairlight-style ADR integration aiding in dialogue cleanup.

This rebuild process, which involves moving clips from the imported AAF tracks to the facility's template tracks and then rebuilding routing and buses, is a critical, labor-intensive step. It typically takes 15-45 minutes per reel at professional facilities. Content-level verification must occur before any creative sound work begins. Skipping this audit can lead to significant issues, such as discovering a lavalier microphone recording on an FX track much later in the process, derailing other spotting and editing tasks like Foley. Furthermore, if the default Pro Tools routing is not matched to the facility's input/output (I/O) configuration (e.g., a 5.1 bus on a mono dialogue track), additional time is lost in re-routing and troubleshooting.

💡 Pro Tip: Use Pro Tools' Clip List sort-by-name and the Strip Silence / Field Recorder workflows to quickly batch-sort clips after import. Some experienced sound editors export a simplified Pro Tools template back to the picture editor as a "reverse handoff" reference, ensuring the picture editor understands the target structure. When budgeting, always factor in time for this rebuild: a 10-minute sequence might require 20 minutes of rebuild if the DX/MX/FX separation was not diligently maintained upstream. For the editorial-side companion, see Dialogue Editing Workflow: Cleaning, Matching, and Continuity.

Cross-NLE Comparisons and AAF Handoff Optimization

While AAF is a universal standard, its implementation and reliability vary across NLEs. The consensus in professional post-production is that Media Composer offers the most reliable AAF export for Pro Tools, a direct result of Avid's role in developing the AAF format. Other NLEs, while capable of AAF export, often present more challenges.

For example, DaVinci Resolve, despite its powerful editing capabilities, typically defaults to generic A1-A8 track labels. While it allows for manual track naming and embedding of names during AAF export (via Deliver > Audio tab), it often requires a more extensive rebuild in Pro Tools compared to a Media Composer export. Adobe Premiere Pro offers track targeting, which helps, but its inconsistent naming conventions can still complicate the handoff. In situations where tracks are not diligently separated in Premiere or Resolve, a hybrid approach of exporting an EDL (Edit Decision List) alongside individual stems (separate audio files for dialogue, music, and effects) may be more reliable than a problematic AAF.

To mitigate these inconsistencies, a crucial step for any production is to perform a test handoff. Before exporting the entire project, export a 1-minute section of the timeline, preferably one with a mix of dialogue, music, and effects. This test AAF should then be imported into Pro Tools by the sound team. This mini-workflow audit allows for early identification of issues related to track naming, handles, and media relinking, preventing silent failures on the full reel handoff. Nuendo, with its explicit track selection dialog during AAF export, mirrors Avid's control over what gets sent, offering a more granular approach to MX/FX isolation.

Logic Pro, primarily a DAW, can also export AAFs, often relying on third-party tools like AATranslator or similar OMF/AAF utilities to achieve full compatibility.

💡 Pro Tip: For productions primarily cutting in Premiere Pro but requiring a high-fidelity AAF for Pro Tools, consider a hybrid workflow that hands the locked sequence to an assistant working in Media Composer for the final AAF polish. For high-end facilities, dedicated I/O hardware like Pro Tools | Carbon helps match facility routing on import, smoothing the transition. A mandatory checklist item before any final delivery should be: "Export test AAF > Import into Pro Tools > Screenshot track layout > Approve before delivering full project." For the format-level tradeoffs, read AAF vs OMF vs EDL for Sound: What Each Is Good For and Common Traps.

Common Mistakes

* Generic Track Naming: Using "Audio 1," "Audio 2," etc., instead of "DX Boom," "MX Temp," "FX Hard." This forces sound editors to manually identify every clip.
